4 Way Reversing Valve

WIDE APPLICATION RANGE

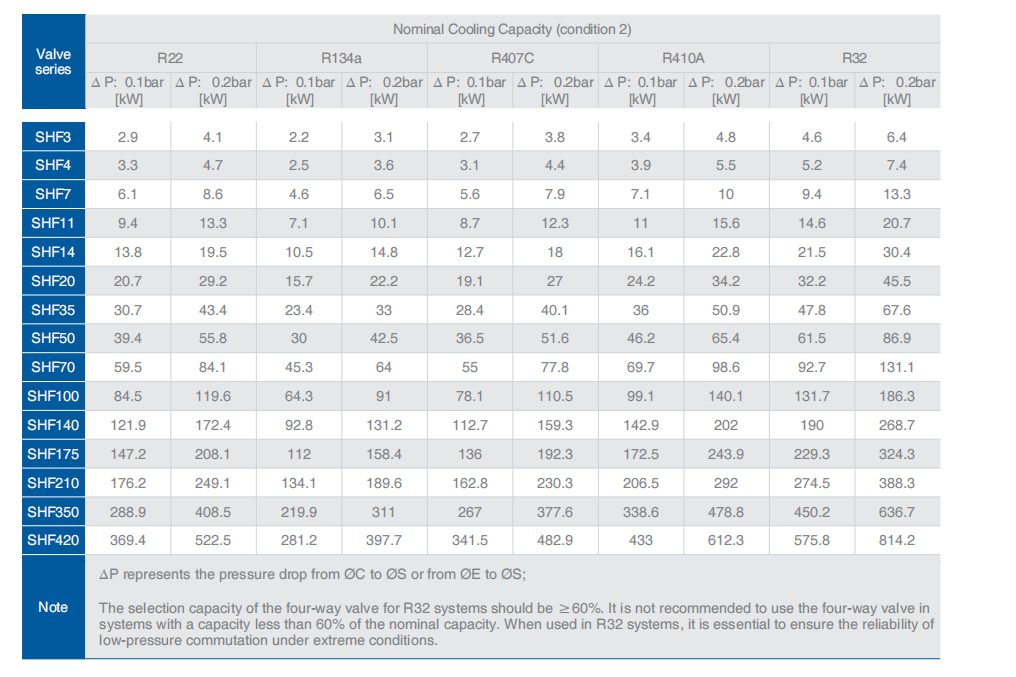

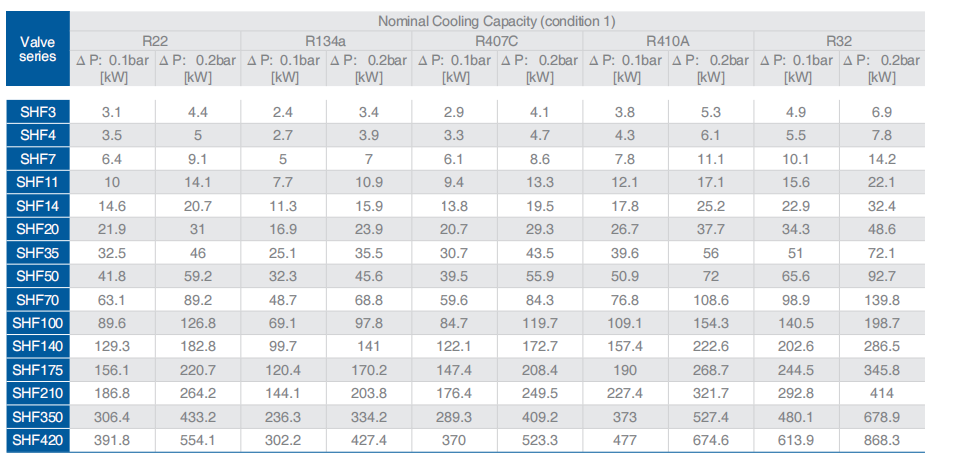

SUITABLE FOR COOLING CAPACITIES FROM 3 TO

420KW(0.9~120 TON)

SHF series four-way reversing valves are applicable forheat pump systems such as central, unitary and room airconditioners to realize switching

between cooling mode andheating mode by changing the flow path of refrigerant.

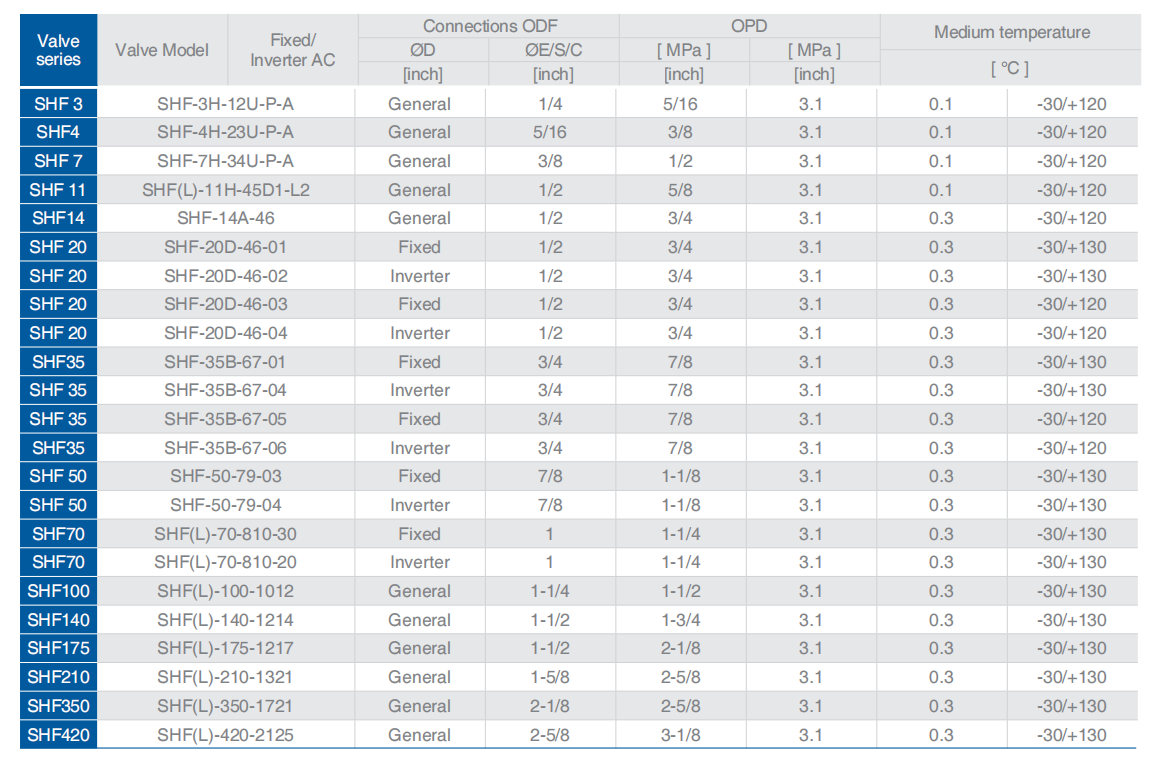

Technical Data

Applicable for all common HCFC, HFC, HFO and HC

refrigerants such as: R22, R134a, R404A, R407C, R410A, R507, R1234yf, R1234ze(E), R32, R290

Ambient temperature min./max.: -30°C / +55°C
Relative humidity: 0 to 95% RH
Max. operating pressure: 4.2MPa (42 bar)
Installation position:

– Coil upwards or with body axis in horizontal alignment

– Flow direction according to installation instruction

Certifications: UL/CUL, VDE, CQC and declaration according to LVD or PED
