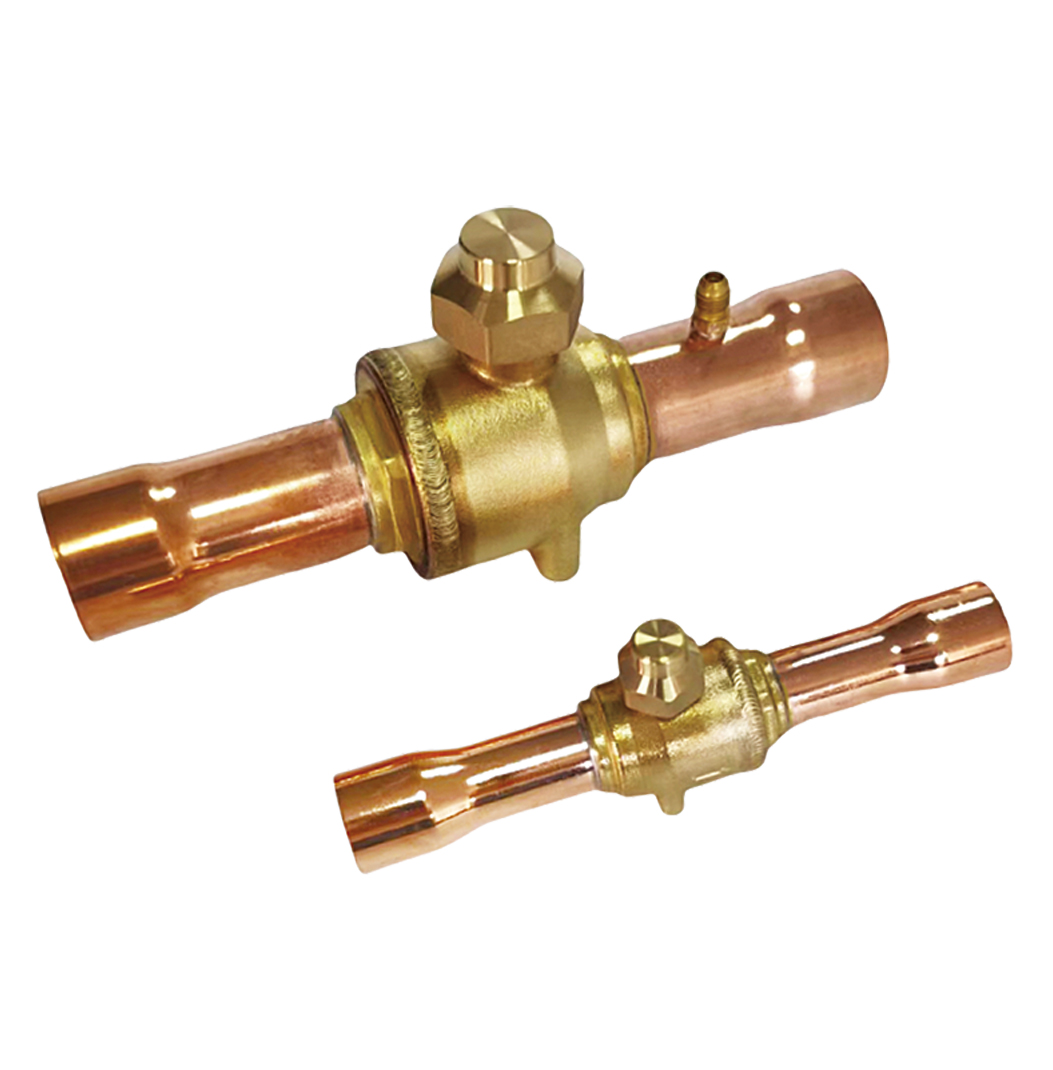

Model HBC ball valve is a manually regulated shut-off valve, which is applicable to two-direction flow.
Model QFT ball valve is a manually adjusted shut off valve, which is applicable to bidirectional flow, can be applied in the liquid, heating and
hot gas pipelines of Refrigeration and A/C equipment. The special design of stem seal and valve ball seal with special sealing materials
ensure the superior performance under common refrigerant working environment.
Model HBC ball valve is used on the liquid, air suction and hot vapor piping of the freezer,could store and air conditioning unit.
The valve seat of Model HBc ball valve is well sealed with perfect sealing performance.
Model HBC ball valve is a through-type ball valve with maximum flow rate and wide scope of operating temperature.
Model HBC ball valve is equipped with a secondary sealing cap
Applicable Refrigerant: HCFC or HFC(Customer choice).
Applicable Medium Temperature: -40~+120℃ .
MAX.Working Pressure: 4.5MPa.
MAX.Compression Pressure: 6.5MPa.
Yearly Leakage of Refrigerant: ≤2g R22/a.
