WLP series pressure control used in refrigeration and compressor airsystem, adjust the equipment is high,low limit control and avoid theover
low suction pressure and over-high exhaust pressure.
WLP series pressure control can start and stop refrigerationcompressors and fans of condensers.
WLP series pressure control can be used in Pneumatic,boiler, fireprotection,ironing,hydraulic,pumps and other equipment.
WLP series pressure control with copper air-box connector, suitablefor freon, air,liquid and other non-corrosive media, with stainless steelair
box connector, it can be used with liguid ammonia etc corrosive gasor liquid system.
Ambienttemperature:-20~70℃
Cable connection
The cable inlet hole diameter:15mm

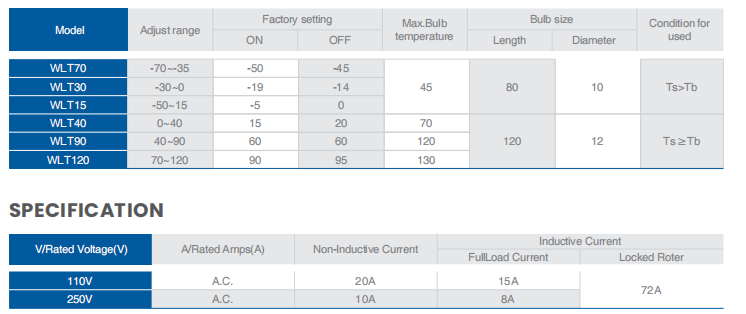

WLTseries temperature control is a temperature-controlled electric switch,can be directly connected to
single-phrase A.C.Motors of upto about 1KW,or installed in the control current circuit of D.C.Motors and
large A.C.Motors.
WLTseries temperature control also can be matched with the solenoid
-valve,used to control the temperature of cold storage.
WLT series temperature control has a single pole double throw(SPDT)
-changeover switch.The position of switch depends on temperature control setting and bulb temperature.
If you have any questions, please contact us and we will reply within 24 hours.
Obtain a customized one-stop solution tailored to your specific needs!
Winlead are committed to transforming the complex requirements of air conditioning cooling, ventilation and cold storage into an integrated environment that is efficient, reliable, economical and easy to manage.
Hangzhou Winlead Technology Co.,Ltd.
